An Introduction to the Guggenheim Museum in Bilbao
Guggenheim Bilbao the museum, officially inaugurated in 1997 by King Juan Carlos I of Spain, is among the most recognizable museums globally due to its bold architecture and edgy structure. It offers a thrilling setting for its wide-ranging collection of art. (Koons & Lee, n.d.) Situated by the river this landmark has been hailed as a turning point in architectural culture because as architectural Pulitzer Prize-winning critic Paul Goldberger has noted it represents a rare consensus among critics scholars and the general public. (Tyrnauer, 2010)
Guggenheim Bilbao: A masterpiece on the water
What Frank Gehry achieved at the Guggenheim Museum Bilbao is extraordinary, insofar as it has held more than 100 different exhibitions and received over ten million visitors, redefining how both the general public and architects look at the concept of a museum and providing a massive economic boost to the city.
Indeed, this phenomenon of change a city undergoes after having created an extraordinary architectural work is today referred to as the “Bilbao Effect.” The museum, to this day, twenty years later, challenges conventional wisdom about the relationships between architecture and art. (Pagnotta, 2013)
Spatial layout and interior design
The Canadian-American architect Frank Gehry constructed the Guggenheim Museum Bilbao as the best instance of the most original 20th-century building design. This 24,000 m2 area, out of which 9,000 is devoted to exhibition space makes visitors enter the Atrium, which is the real heart of the museum and a peculiar feature of Frank Gehry’s architectural style. (Meet Frank Gehry, Guggenheim Museum Bilbao, n.d.)
The atrium is a spacious area that is well-lit by a big skylight and has curving volumes and wide glass curtain walls that connect the interior and outdoors. (Inside the Museum, Guggenheim Museum Bilbao, n.d.)
The Guggenheim Bilbao’s Atrium
The building’s three floors are arranged around the atrium and connected by curving walkways, glass and titanium elevators, and stairs. The Atrium, which doubles as an exhibition area, serves as a hub for the 20 galleries, some of which have organic, asymmetrical lines and others that are orthogonally formed and have classical proportions.
Guggenheim Bilbao plan Inside the museum: Galleries
The museum’s organizational hub is the spacious, light-filled atrium, which spans 11,000 square meters of exhibition space over nineteen galleries. These ten galleries are distinguished from the outside by a limestone finish, which adheres to a traditional orthogonal layout. From the exterior, the remaining nine galleries may be recognized by their swirling, organic shapes covered with titanium. The biggest gallery, measuring 30 by 130 meters, is home to a permanent Richard Serra installation titled “The Matter of Time.” (Pagnotta, 2013)
The use of varying volumes and viewpoints creates interior environments that prevent visitors from feeling overpowered. Under the skilled hands of curators and exhibition designers, who have discovered the perfect setting to showcase both huge works in modern mediums and smaller or more intimate exhibits, such variety has proven its immense adaptability.
The ship-like profile visible from the river recalls the area’s industrial heritage, while from above, the building’s plan resembles a flower, with petals spreading out around a central atrium. The museum’s galvanized steel framework is clad externally in limestone and glass, along with titanium panels, chosen for the way the metal reflects natural light. (Griffiths et al., 2022)
Structural Challenges and Engineering Solutions
The Guggenheim Museum Bilbao was constructed from October 1993 to October 1997. The location, which was selected on an abandoned dock with industrial and port uses on a bend in the Nervión, symbolized the city’s reclamation of the riverbanks and their development for recreation and culture. (The Construction of the Building | Guggenheim Museum Bilbao, n.d.)
Gehry chose to use CATIA, a sophisticated program that was first created for the aerospace industry, to accurately convert his concept to the building and aid in construction because of the mathematical intricacy of his design. After ruling out alternative materials and seeing the behaviour of a titanium sample posted outside his office, the architect decided to use titanium for the building’s exterior skin.
Guggenheim Museum Bilbao Architecture the twisting curves were created using CATIA
The around 33,000 very thin titanium sheets have a rough, organic texture that adds to the material’s colour shifts in response to light and weather. The building’s other two elements, glass and limestone, work in unison to create an architectural design with a striking visual impact that has already established itself as a true global symbol of the city. (Pagnotta, 2013)
Owing to their mathematical complexity, the twisting curves were created using CATIA, a 3-D design program that was not conceivable just a few years ago. In essence, Gehry’s hand-built models are digitized by the program at the edges, surfaces, and intersections to create on-screen models that may be adjusted in a similar way to animated cartoons. (Griffiths et al., 2022)
The load-bearing walls and ceilings of the building have an interior framework made of metal rods arranged in triangle-shaped grids. The number of bars needed at each place, together with the positions and orientations of the bars, were determined using CATIA. (The Construction of the Building | Guggenheim Museum Bilbao, n.d.) Apart from this framework, many insulating layers and an exterior titanium coating are present on the walls and ceilings.
The dynamic shapes that characterize the outside of the Guggenheim Museum Bilbao were made possible. by computer modelling software produced by the French aerospace company Dassault Aviation (Dassault CATIA, 2023). Each component is unique in its placement, as defined by the CATIA program. (The Construction of the Building | Guggenheim Museum Bilbao, n.d.)
The Role of Deconstructivism in the Museum’s Architecture
Gehry is perhaps the best representative among architects who realized themselves in works created in the style of deconstructivism, such as the Guggenheim Museum Bilbao. With its elaborate and fragmented form, as well as iconic titanium cladding, the building addresses the traditional ideas of architectural symmetry and balance. (Gehry & Koshalek, 2019) There is a prevalent feeling of movement and dynamic in the museum’s asymmetrical shape. Gehry’s buildings aren’t mere static structures but dynamic entities that enter into an active conversation with their surrounding cityscapes. (Cohen, 2023)
Philip Johnson (left) visited the museum with Frank Gehry (right) shortly after it opened, Frank Gehry Guggenheim Bilbao
The Guggenheim Museums peculiar appearance—a disorganized assembly of non-rectilinear volumes—became representative of the deconstructivist architectural movement despite Gehrys denial that he belongs in that genre. The Guggenheim Museum Bilbao which Gehry developed in response to the then-dominant postmodernist architectural style is the culmination of his design language in his opinion.
The illustration is by Jack Bedford.
Rejecting postmodernism and its pastiche of historical architectural styles, he said he would rather gaze back 300 million years at forms that existed before humans. Fish, in particular, captivated him. (Griffiths et al., 2022)
The Museum’s Relationship with Its Surroundings: The River and the City
The building’s metallic design seems almost floral when viewed from above, but when viewed from below, it more closely resembles a boat, evoking memories of Bilbao’s previous industrial port. Made of glass, limestone, and titanium, the exterior’s seemingly haphazard contours are intended to collect light and respond to the sun and weather. The shallow centre depression that fixing clips produce in each 38-mm titanium tile gives the surface an incredible iridescence and ripple pattern that changes with the light.
From above, the building’s metallic shape appears almost flowery; nevertheless, from below, it more closely resembles a boat, bringing to mind the port of Bilbao’s former industrial activities. Made of glass, limestone, and titanium, the exterior’s seemingly haphazard contours are intended to collect light and respond to the sun and weather. Each of the 38-mm titanium tiles has a shallow center depression created by fixing clips, which gives the surface an amazing iridescence and a ripple effect in response to changing light. (Griffiths et al., 2022)
Inside and outside spaces flow with each other
The museum is situated in a recently built part of the city, leaving its industrial background behind, and is surrounded by lovely avenues and squares. One of the main streets that run diagonally through Bilbao, Calle Iparragirre, is directly in line with the museum’s main entrance and plaza, extending the city centre right up to the museum’s door. (Pagnotta, 2013).
Once in the plaza, guests reach the hall by descending a wide stairway—a unique design element that effectively bridges the elevation difference between the museum’s location along the Nervión River and the higher city level. Gehry was able to design a stunning tower in this fashion without making it higher than the other structures.
One of the most distinctive aspects of the architecture, the huge skylight shaped like a metal flower covering the Atrium, crowns the highest point of the museum.
The whole museum may be explored on foot, where one can view many arrangements from every angle as well as several outdoor artworks by artists including Jeff Koons, Fujiko Nakaya, Yves Klein, Eduardo Chillida, and Louise Bourgeois. (Outside the Museum | Guggenheim Museum Bilbao, n.d.)

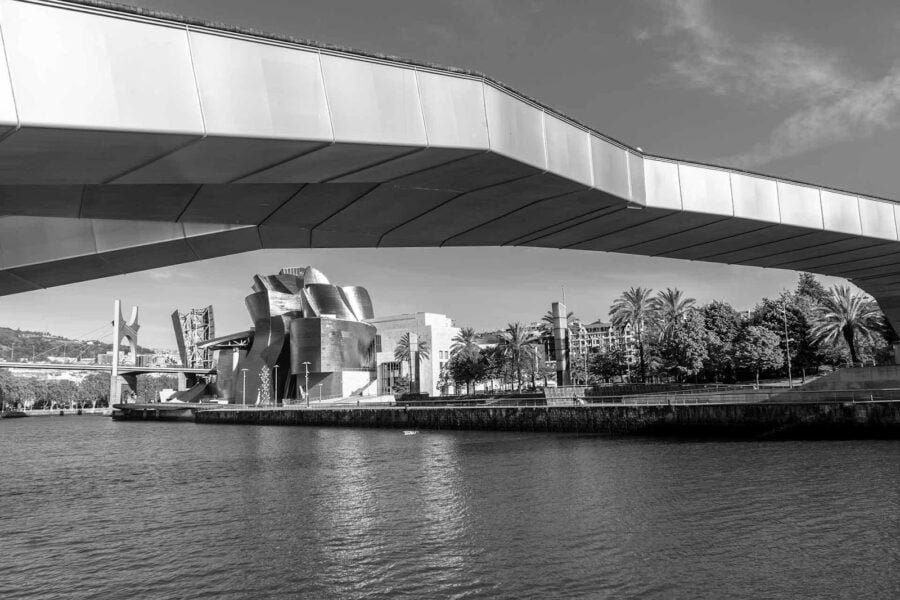

La Salve Bridge, which has supported the artwork Arcos Rojos and Arku Gorriak, a commission from Daniel Buren, since 2007, spans the museum site at one end.
The Museum’s Impact on Urban Regeneration
The Guggenheim Bilbao has become an important element in the urban generation process of Bilbao in Spain. (Koons & Lee, n.d.) Before this museum was constructed, the town was unable to recover from economic decline and industrial decay. Its unique architecture, together with rich cultural acquisitions, transforms Bilbao into a dynamic and vibrant centre of culture, business, and investment that attracts new tourists.
The Guggenheim Bilbao has regenerated the area, provided jobs, and increased property values, thus raising the standard of living for the people residing in that area. It has also tended to act as an agent of community engagement and cultural development for its citizens by engendering a sense of pride and belonging among its inhabitants. (Pagnotta, 2013)
Initial Modal of the Museum
Its success has inspired other cities to view cultural institutions as instruments of urban regeneration. It is proof that the model of the Guggenheim Bilbao works elsewhere in the world: culture has a magic touch that could alter the urban face of a city and the fate of its people.
Another very salient aspect of the design of the Guggenheim Bilbao is its relation to the urban environment. The museum lies on the banks of the Nervión River and is surrounded by public spaces and green areas that have revitalized the surrounding neighbourhood and attracted visitors from all over the world. (Gehry & Koshalek, 2019)
Cultural and Economic Influence on Bilbao
The museum’s influence on society and the economy has been remarkable. About 4 million people visited the museum in its first three years of existence, bringing in roughly $500 million in revenue. (Kivlehan, 2021)Additionally, over $100 million in taxes were received from the money tourists spent on lodging, dining, shopping, and transportation, more than offsetting the building’s cost. But the “Bilbao Effect” promise also led to a global “statement” architecture construction boom, which turned out to be unwise after the most recent financial crisis. (Koumari, 2021) However, the museum is known for its complexity and design.
The Museum had a major impact on the city.
Sustainability and Innovation in Design
Energy efficiency is one of the prime factors embedded in the Guggenheim Bilbao’s design. The museum has modern, effective HVAC systems, uses LED lighting, and uses natural ventilation to make sure energy consumption is at the minimum rate. In addition, large skylights and windows bring in a large volume of natural light, reducing the use of electric light almost to zero. It also uses water-saving measures: it collects rainwater and uses efficient irrigation to curtail this vital resource. (Environmental Sustainability | Guggenheim Museum Bilbao, n.d.)
Material selection at the Guggenheim Bilbao reflects its commitment to making it sustainable. It also follows sustainable construction procedures, and second-hand materials are placed wherever possible. This helps in not only reducing the environmental impact on the museum but also providing a more sustainable future. (Environmental Sustainability | Guggenheim Museum Bilbao, n.d.)
Comparisons with Other Guggenheim Museums
The term “Bilbao effect” describes the tendency of towns all over the world to establish prominent cultural structures to emulate Guggenheim’s success. Numerous projects have failed to provide comparable advantages to local populations as a result of this tendency. Frank Gehry, the architect of the Guggenheim in Abu Dhabi, does recognize that the project changed the social and economic dynamics of the city, but he doesn’t give a flying fuck about worldwide imitations or the trend that his building set in motion. His intention, he feels, was to blend into the city rather than to change it. The Guggenheim Abu Dhabi is scheduled to open in 2025.
Critical reception and legacy
This remarkable iconic structure is the Guggenheim Bilbao. Although it has dominated Bilbaos symbolic landscape the building has been a real failure as a public space failing to support and celebrate the vibrant local culture. The museum, designed by Frank Gehry, interrupts the city’s life and insults pedestrians who would like to use the space for anything other than gawking at the building. The museum may bring people to Bilbao, but it only degrades the civic and cultural life that makes people proud to live in the city. (Kent, 2024)
The building’s design and approach to design and development are an affront to public spaces everywhere. The public spaces around Guggenheim Bilbao are a void in the civic life of a great city. It has drawn attention to Bilbao, but it has also obscured and pushed the city’s vibrant social scene and rich cultural heritage, so the total effect has been a temporary sugar high.
Guggenheim Bilbao Images
Although they should go hand in hand, beautiful public spaces and architecture rarely do. The arrogance of the Guggenheim Bilbao and its approach to design and development affront public spaces everywhere. The museum not only ignores context but also pushes away and hides Bilbao’s rich culture and social life, making it a net loss for the city. (Kent, 2024)
Conclusion
The Guggenheim Bilbao, a masterpiece of contemporary architecture, has left an indelible mark on the city and the world of art. Its innovative design, coupled with its transformative impact on Bilbao’s urban regeneration, has solidified its status as a global icon. (Cohen, 2023)
Recently, its world icon status has been raised by its innovative design, together with touching urban renewal in Bilbao.
Guggenheim Bilbao Center
This museum has been, from the very beginning, an overt challenge to traditional notions of architectural form and function—a bold, imaginative design that shows what can be done. Its unique blending of art and architecture has drawn millions of visitors, revived the city’s economy, and inspired countless architects and artists.
Although the Guggenheim Bilbao is seen as excessively exclusive to the cultural and collective life of the city, one thing really cannot be denied: this museum has elevated its unquestionable impact on the urbanistic development of Bilbao and its position among the cultural objects with a capital letter. The museum’s success stands as a testament to the power and potential of cultural institutions to remake cities and inspire new ways of thinking about art, architecture, and urban development.
FAQs
What are The Guggenheim Bilbao opening hours?
The Guggenheim Museum Bilbao is generally open to the public during the following hours:
–Tuesday to Sunday: 10:00 AM – 7:00 PM
–Closed on Mondays, except for certain holidays
References
- Cohen, J. (2023, July 4). The Guggenheim Museum Bilbao by Frank Gehry: A Symphony of Shapes. Arch Eyes. Retrieved August 25, 2024, from Link
- The construction of the Building | Guggenheim Museum Bilbao. (n.d.). Guggenheim Bilbao. Retrieved August 25, 2024, from Link
– - Dassault CATIA. (2023, May 3). 3DFindit. Retrieved August 25, 2024, from Link
- Environmental sustainability | Guggenheim Museum Bilbao. (n.d.). Guggenheim Bilbao. Retrieved August 25, 2024, from Link
- Gehry, F., & Koshalek, R. (2019, April 8). Frank Gehry Paintings, Bio, Ideas | TheArtStory. The Art Story. Retrieved August 25, 2024, from Link
- Griffiths, A., Ortiz, A., & Rundle, T. (2022, May 18). Frank Gehry’s Guggenheim Museum Bilbao is “the greatest building of our time”. Dezeen. Retrieved August 25, 2024, from Link
- Inside the Museum | Guggenheim Museum Bilbao. (n.d.). Guggenheim Bilbao. Retrieved August 25, 2024, from Link
- Kent, E. (2024, May 1). Guggenheim Museum Bilbao | Hall of Shame. Project for Public Spaces. Retrieved August 25, 2024, from Link
- Kivlehan, N. P. (2021, October 6). Buildings that elevated cities: Bilbao’s Guggenheim | Modus | RICS. MODUS | RICS. Retrieved August 25, 2024, from Link
- Koons, J., & Lee, R. (n.d.). Guggenheim Museum Bilbao. Wikipedia. Retrieved August 25, 2024, from Link
- Koumari, L. (2021, November 29). Uncoverd 02 – Guggenheim Museum Bilbao (Frank Gehry). Parametric Architecture. Retrieved August 25, 2024, from Link
- Meet Frank Gehry | Guggenheim Museum Bilbao. (n.d.). Guggenheim Bilbao. Retrieved August 25, 2024, from Link
- Outside the Museum | Guggenheim Museum Bilbao. (n.d.). Guggenheim Bilbao. Retrieved August 25, 2024, from Link
- Pagnotta, B. (2013, September 1). AD Classics: The Guggenheim Museum Bilbao / Gehry Partners. ArchDaily. Retrieved August 25, 2024, from Link
- Sharma, A. (n.d.). Guggenheim Museum Bilbao by Frank Gehry: United the Critics, Academics, and the General Public – RTF. Rethinking The Future Retrieved August 25, 2024, from Link
- Tyrnauer, M. (2010, June 30). Architecture in the Age of Gehry. Vanity Fair. Retrieved August 25, 2024, from Link
