Interactive architecture
Interactive architecture, in contrast to typical static constructions, includes responsive features that communicate with users, the surrounding environment, or outside stimuli. The advent of digital technologies has propelled interactive architecture into a realm where buildings become dynamic, living entities. It viewed the structure as an enclosure that creates a room conducive to certain activities. Beyond aesthetics, interactive architecture holds the potential to enhance functionality and sustainability. Responsive building systems can optimize energy usage by adjusting lighting and climate control based on occupancy and external factors.
These components empower structures to perceive a myriad of inputs, ranging from the subtle movements and preferences of occupants to the nuanced variations in environmental conditions. The responsiveness of interactive architecture is manifested through dynamic elements, such as kinetic facades, adaptable lighting systems, or interactive installations that transform the built environment based on contextual stimuli. Buildings, once considered static entities, now can evolve, react, and engage dynamically.
Responsive Architecture
Responsive architecture represents a significant evolution in building design, distinguished by its capacity to adapt and respond to various stimuli. It is made up of smart systems, frames, and skins. By mimicking the bionic performances of natural and human systems, the building responds by changing its structure and physical characteristics. This paradigm change adds a degree of flexibility and involvement that improves the experience and functional components of design, going beyond the typical static character of structures.
Responding to a design’s governing constraints is the focus of responsive architecture. For instance, the environment, user activity, or building function are examples of stimuli. Energy-efficient architecture, kinetic design, or actuated tension are examples of responses. Moreover, responsive structures can engage with the occupants by recognizing their movements, preferences, and needs. This interactive dialogue between the architecture and its users transforms spaces into dynamic environments that cater to the evolving requirements of modern living.
Interactive architecture prioritizes direct user engagement, creating environments where buildings actively respond to human interactions, movements, or gestures. This approach seeks to foster a Responsive architecture that stands out due to its profound adaptability to external stimuli, encompassing factors such as environmental conditions. While user comfort is considered, the primary focus is on creating structures that autonomously react to their surroundings, adjusting elements such as shading systems or building facades.
Kinetic Architecture
Certainly, architectural design has seen innovation with the incorporation of kinetic facades. One component of the kinetic architecture that may be utilized to regulate information, light, air, and energy is the dynamic facade. It can modify the inside climate by letting in more fresh air. This transformative feature introduces a new layer of functionality, aesthetics, and energy efficiency to architectural design. The dynamic components have functional uses in addition to reinventing a building’s look. Based on the present demands of the building, they can improve ventilation, or provide seclusion.
Architects collaborate with engineers to integrate responsive technologies and mechanisms seamlessly into the building’s framework. Beyond their practical benefits, kinetic facades contribute to the overall architectural narrative, engaging occupants and passersby in a dynamic visual dialogue. Additionally, kinetic facades have the potential to align with sustainable design principles by optimizing energy usage and promoting passive climate control. While kinetic facades represent a futuristic and innovative architectural trend, their integration requires thoughtful consideration of technical, aesthetic, and environmental factors.
Beyond their aesthetic and functional advantages, kinetic facades contribute to the narrative of interactive architecture – a category encompassing structures that actively adjust to the needs of their environment and inhabitants. Users can interact with the external facade through direct control methods or by triggering features that respond to their presence or preferences. The adaptability of kinetic facades extends to their capacity to create responsive and energy-efficient structures. The integration of digital technologies further expands the possibilities of kinetic facades. This intersection of architecture and technology provides practical benefits and showcases the potential of kinetic facades.

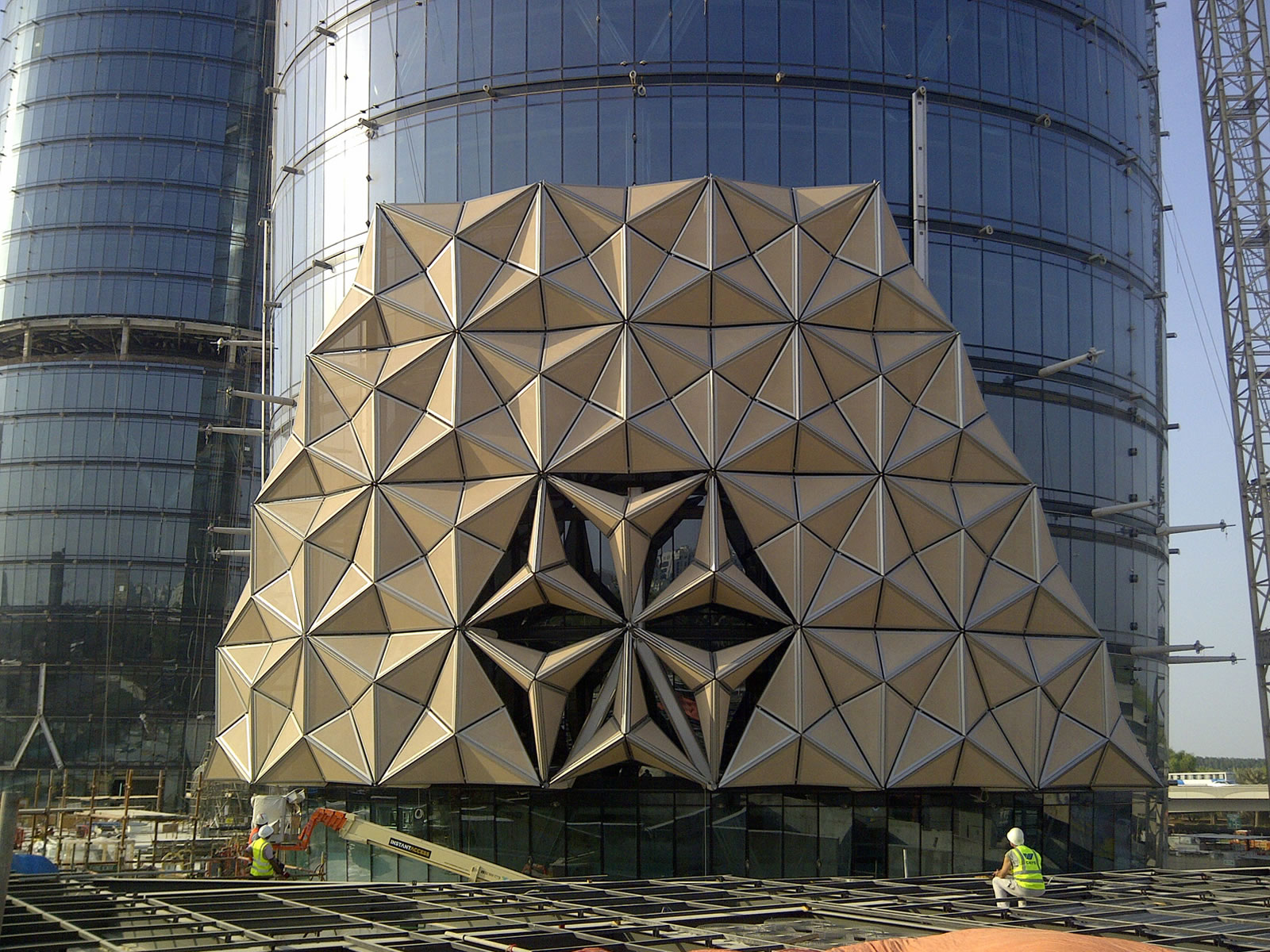

The Al Bahr Towers in Abu Dhabi, UAE
The Al Bahr Towers are two impressive towers with a dynamic and inventive kinetic exterior that are situated in the center of Abu Dhabi. The inspiration for the kinetic facade comes from traditional Islamic architecture. The concept of mashrabiya– a style of latticework used for privacy and shading in Islamic buildings. The facade comprises over 2,000 individual umbrella-like modules. The kinetic facade optimizes solar protection by adjusting the openings of the triangular panels based on the sun’s position.
Beneath the inventive exterior is a sophisticated technical structure. By utilizing smart technology, the buildings maintain their environmental consciousness without sacrificing tenant comfort. Operating as a curtain wall, the screen is situated on an independent frame two meters beyond the building’s facade. To lessen solar gain and glare, each triangle is covered with fiberglass and designed to react to changes in the sun.
Such a screen is predicted to cut solar gain by over 50% and lessen the demand for energy-intensive air conditioning in the structure. The Al Bahr Towers’ adaptable Mashrabiya facade is essential to the structure’s sustainability. The panels greatly minimise solar heat gain by varying throughout the day to regulate the amount of sunshine entering the interior, hence lowering the towers’ dependency on artificial cooling systems.
History Of Kinetic Facade
Kinetic design evolution has a long history. As time went on, the first kinetic design was created in 1908. Then, as a dynamic design, transformable architecture emerged. It required decades of years to integrate computer science with the kinetic notion. Fuller experimented with dynamic building skins that could adapt to their surroundings in the 1950s and 1960s. These early experiments established the conceptual framework for further advances, even if they weren’t kinetic facades in the contemporary sense.
The 20th century indeed witnessed the emergence of kinetic art, with notable contributions from artists such as Alexander Calder and Jean Tinguely. Because these artists used movement in their sculptures, architects were influenced to use kinetic features in building design. Modern examples of kinetic facades started to emerge in iconic buildings around the world. The Eden Project’s Biomes in the United Kingdom, completed in 2001, featured a series of hexagonal panels that could open and close to regulate temperature and ventilation. Similarly, the Al Bahr Towers in Abu Dhabi, completed in 2012, showcased a responsive facade inspired by traditional Islamic architecture, featuring sun-responsive geometric panels that opened and closed dynamically.
The Kunsthaus Graz in Graz, Austria
The Kunsthaus Graz, being one of the first buildings with a kinetic facade, likely faced challenges in terms of engineering precision. It is characterized by its biomorphic form, resembling a giant blob or organic creature. The designers drew inspiration from natural forms and shapes. The facade incorporates a dynamic and kinetic sun-shading system made up of 1,288 individual acrylic glass elements, known as “pixels.” Each bixel can pivot independently, allowing the facade to respond dynamically to changing sunlight conditions and environmental factors.
Based on the idea of Berliner architect’s realities: united, the museum’s BIX facade is a unique combination of architecture and new media. “Big” and “pixels” combined, the term “BIX” refers to the acrylic glass skin of the building facing the Mur and the city center. It is a large urban screen that is used as a prop for creative shows. The kinetic facade serves a functional purpose by acting as an adaptive sun-shading system. The movement of the individual bixels allows for real-time adjustments to control the amount of sunlight entering the building.
Kinetic Structure Systems
Kinetic structure systems represent a groundbreaking approach to architectural design, introducing dynamic, movable elements into the very fabric of buildings. These systems incorporate parts that may alter their location, form, or orientation in response to different stimuli, going beyond the conventions of static structures. A kinetic structural solution can be performed by folding, sliding, expanding, and changing in size and shape. The method of operation might be mechanical, magnetic, natural, or pneumatic.
Within a fixed place, Embedded Kinetic Structures are a component of a wider architectural system. Its goal is to regulate the primary architectural system or building in reaction to different circumstances, such as earthquake-dampening structures. Deployable Kinetic Structures are often found in a temporary place and are easily transportable. Although they function independently of the greater architectural system, dynamic kinetic structures are still a component of it. They are physically transportable across different architectural spaces.
Kinetic structure systems challenge the static character of buildings by bringing a level of dynamism that revolutionizes conventional architectural paradigms. The adaptability of kinetic structure systems’ moveable components is one of its main features. For example, retractable roofs provide an immersive experience by facilitating the seamless integration of interior and outdoor areas. Controlling exposure to natural factors improves user comfort and experience, which makes this function especially useful in places like stadiums, event sites, and cultural organizations.
Biomimicry in kinetic facade
The creation of kinetic facades can benefit greatly from the application of biomimicry, the technique that uses natural phenomena as inspiration to address architectural problems. Designers can improve the kinetic facades’ aesthetic appeal, usefulness, and efficiency by mimicking biological principles present in nature. One biomimetic approach for kinetic facades involves mimicking the adaptability seen in natural organisms. For example, the dynamic movement of certain plant structures, like sunflowers following the sun, can inspire kinetic facade systems that adjust based on the path of the sun throughout the day.
Furthermore, biomimicry may have an impact on the choice of materials for kinetic facade elements. Designers may use materials that improve the longevity, upkeep, and overall performance of kinetic components. These bio-inspired materials may aid in the creation of kinetic facade systems that can clean or mend on their own. Furthermore, biomimicry in kinetic facades can explore patterns and forms observed in nature to enhance aesthetic appeal and integration with the surrounding environment. Mimicking the way certain organisms create intricate patterns or adapt their appearance for camouflage, designers can create kinetic facades that harmonize with the architectural context or change appearance in response to specific stimuli.
In the context of kinetic facades, biomimicry entails a thorough investigation of natural design solutions to guide the creation of dynamic, responsive building exteriors. One use of biomimicry in kinetic facades is the imitation of living things’ organic movement patterns. For example, sunflowers follow the path of the sun through heliotropic behavior. By using this idea with kinetic facades, designers may build systems that dynamically change over the day to maximize solar exposure, improving energy economy and decreasing dependence on artificial lighting.
The Eden Project Biomes
Certainly, the Eden Project stands out for its application of biomimicry in the design of its biome buildings, particularly in emulating natural processes through the manipulation of dynamic facades. The awe-inspiring view of bubble-shaped Biomes nested in an old clay mine has lured millions of tourists annually. The Eden site is home to several other instances of distinctive and environmentally friendly architecture, such as the Core building, which was inspired by plants.
The design of the biome structures at the Eden Project draws inspiration from the biomechanics of plant movements, specifically the behavior of soap bubbles and the responsive nature of certain plant structures. The architects aspired to craft dynamic enclosures capable of adapting to varying environmental conditions, echoing the responsiveness observed in leaves or petals. Biomimicry is used to optimize daylighting within the biomes. The kinetic facades mimic the way leaves in a forest canopy adjust their orientation to capture sunlight. The ETFE cushions can be positioned to control the amount of natural light entering the biomes, ensuring that different plant species receive the appropriate light levels.
Similar to the stomatal pores on plant leaves that open and close to regulate gas exchange, the kinetic facades aid in climate control. The ETFE cushions can be adjusted to allow for passive ventilation, optimizing the internal humidity and air circulation within the biomes. The ETFE cushions are filled with air and can be inflated or deflated based on environmental conditions. Inspired by the behavior of soap bubbles, the kinetic facades respond to changes in temperature and light. The geodesic design of the kinetic facades not only mimics natural structures found in leaves and plant cells but also enhances structural efficiency.
Every dome features a two-layered structure called a hex-tri-hex space frame. Hexagons, the biggest of which is 11 meters across, and the occasional pentagon make up the outer layer. The air within the Biomes weighs the same as the steelwork. They function similarly to double-glazing in homes, with two panels -ethylene tetrafluoroethylene panels-trapping air between them. The dynamic response to environmental conditions helps maintain optimal conditions for plant growth with minimal energy consumption.
